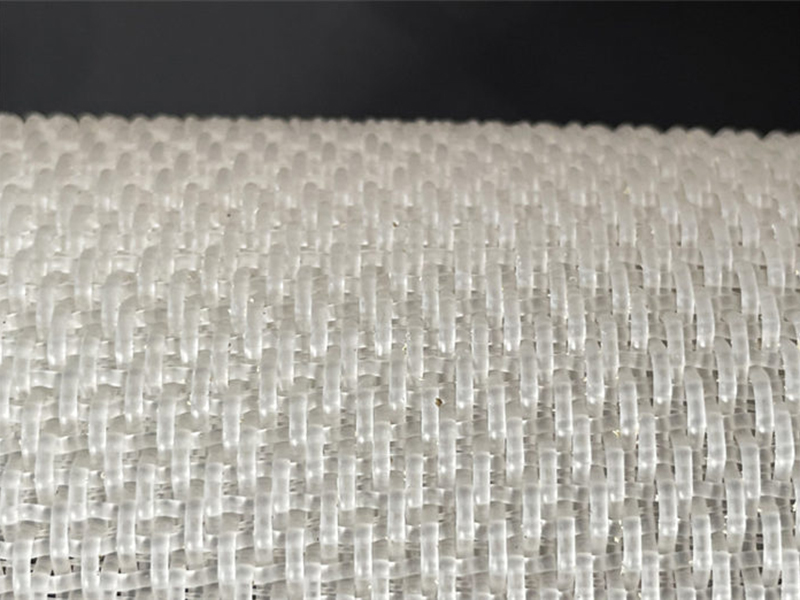

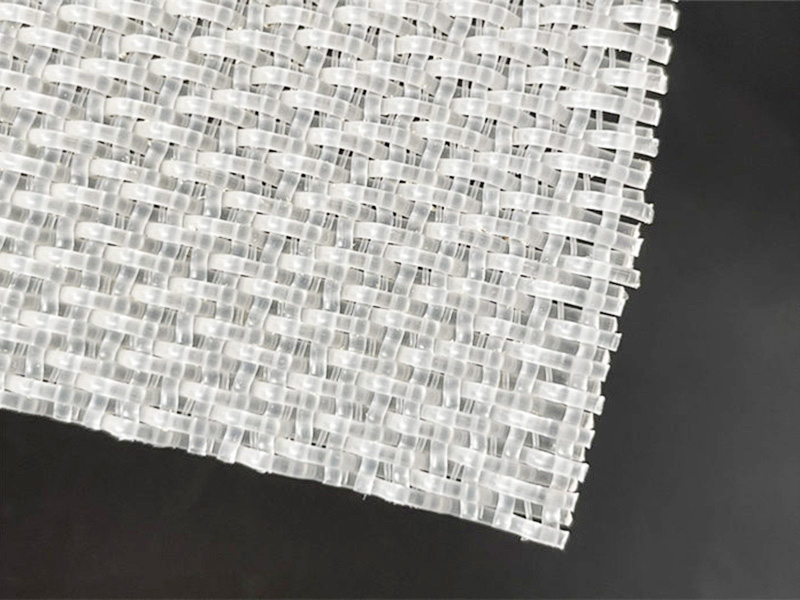

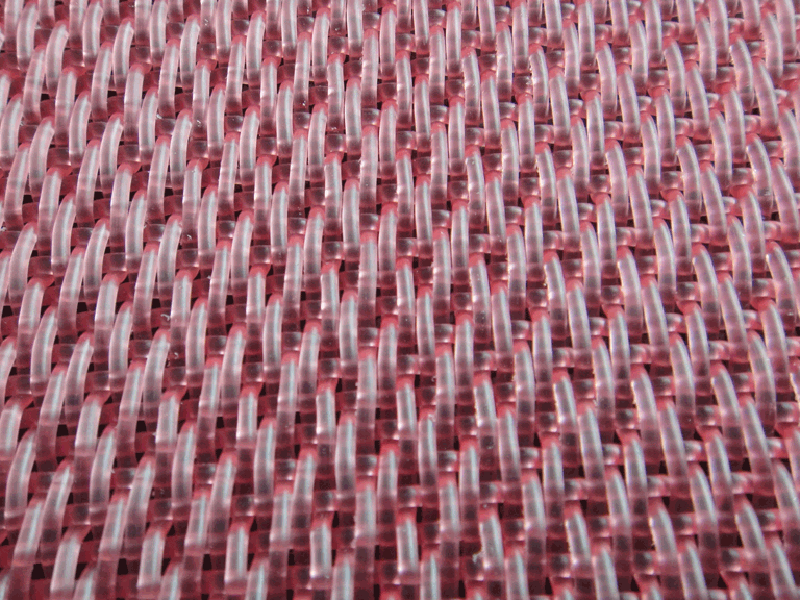

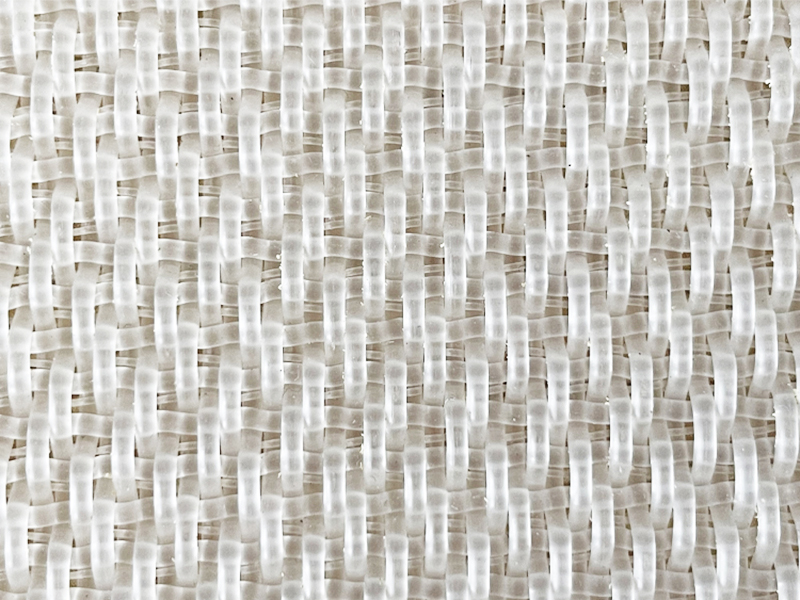

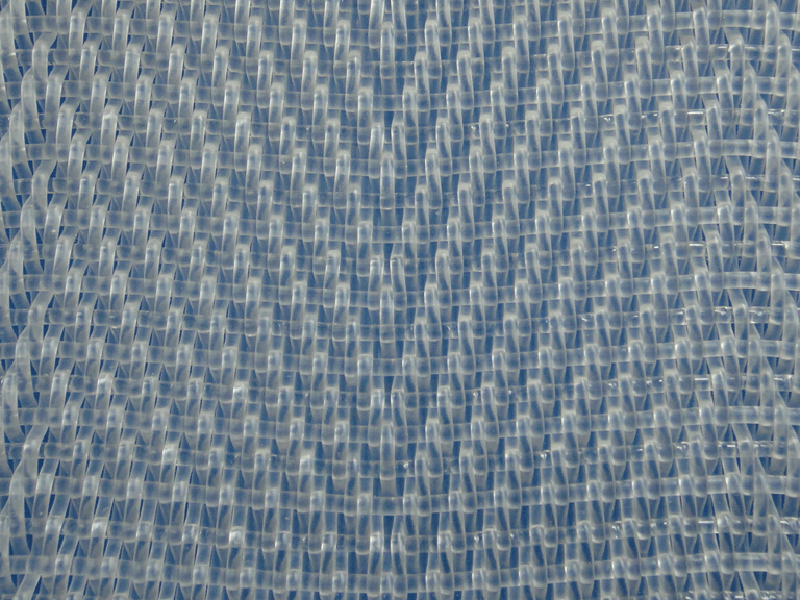

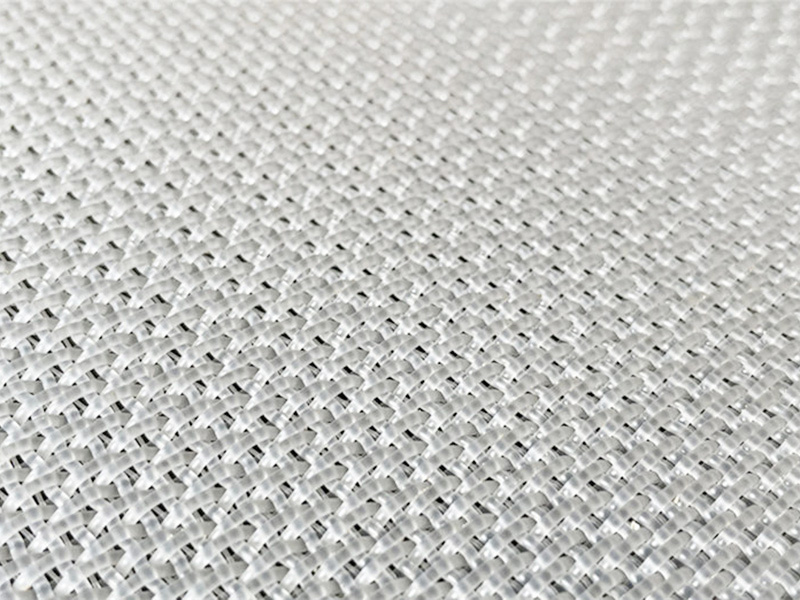

Polyester Alkali-resistant Mesh Belts

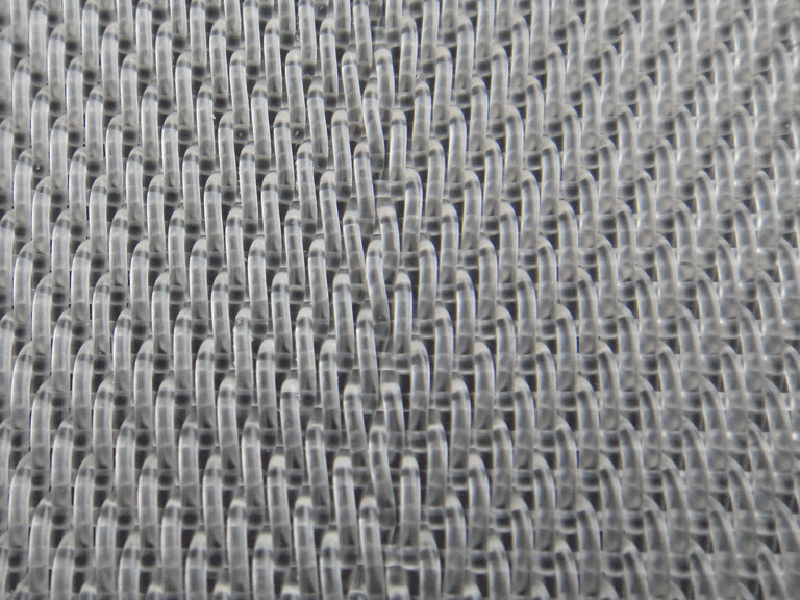

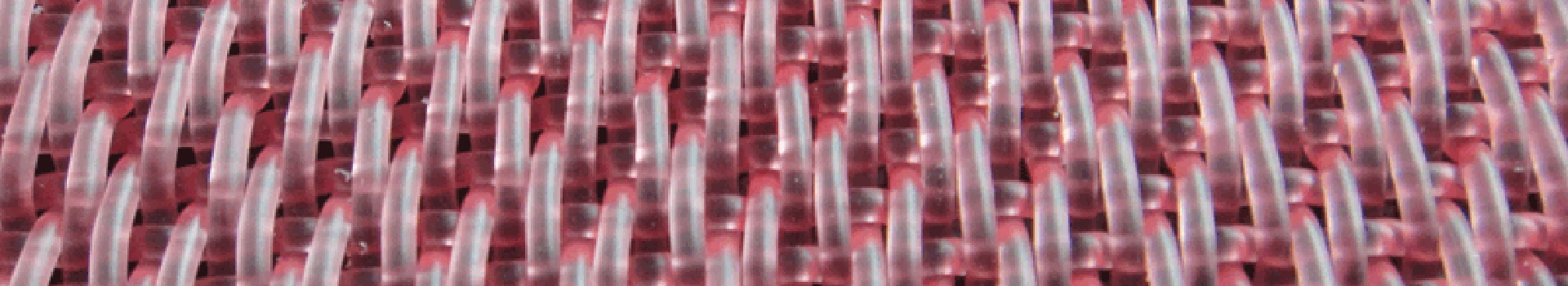

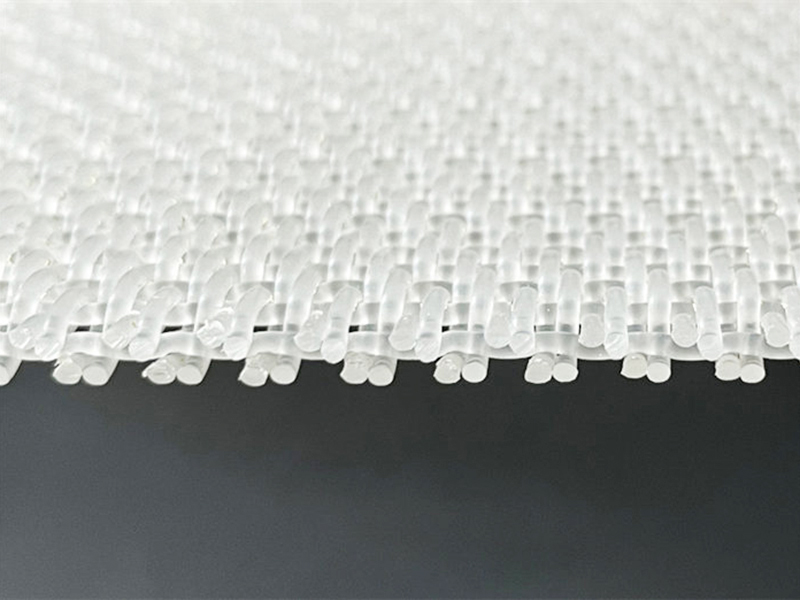

Polyester Alkali-resistant Mesh Belts Description
The alkali-resistant mesh belt adopts a professional and unique design, which is mainly made of nylon and PPS monofilament. Its working temperature can reach over 100℃, and its alkali resistance is> 20% (20% sodium hydroxide). It is made of high-quality nylon and PPS monofilament has the characteristics of high tensile strength and high wear resistance.
Feature
● Higher working temperature (can be used normally at 100℃), strong alkali resistance (such as 20% sodium hydroxide)
● High tensile strength, high wear resistance, wear resistance is 10-50 times that of ordinary synthetic fibers
● The surface of the alkali-resistant mesh belt is smoother, and it is easier to peel off from the loaded material
● The mesh belt is treated with high stability, the structure is stable, and it is not easy to be deformed after a long time of continuous work.
Application
Alkali-resistant mesh belt series products are mainly used in industries where the use temperature is high (100°C), the alkali content is ≧20% (20% sodium hydroxide), the tensile strength is high, and the wear resistance is high. For example, chemical industry, manufacturing industry, etc.
| Model | Filament diameter | Density | Strength | weight | Thickness | Air permeability | CFM | Material | |||
| (mm) | (wire/cm) | (N/cm) | (Kg/m2) | (mm) | (m3/m2h) | (127/pa) | |||||
| warp | weft | warp | Weft | surface | Joint | ||||||
| 121104 | 0.9 | 1.1 | 12.8 | 4 | 1600 | 900 | 1.57 | 3.05 | 9600 | 600 | PA6 |
| 15905 | 0.9 | 0.9 | 15.3 | 5 | 1600 | 900 | 2 | 2.77 | 6800 | 425 | PA6 |
| 61204 | 1.2 | 1.2 | 7 | 4.3 | 1600 | 900 | 1.9 | 2.9 | 6896 | 431 | PA6 |
| 121204 | 1.05 | 1.2 | 12.6 | 7.4 | 1600 | 900 | 2.6 | 3.5 | 12050 | 659 | PA6 |
| 16903 | 0.7 | 0.9 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 | 470 | PA6 |
For Business: For Business inquiry fill our feedback form and Troll Free Number +86 15130825795, our team will help you with in 24 hours.
