Pulp Washing Mesh Fabrics
Pulp Washing Mesh Fabrics Description

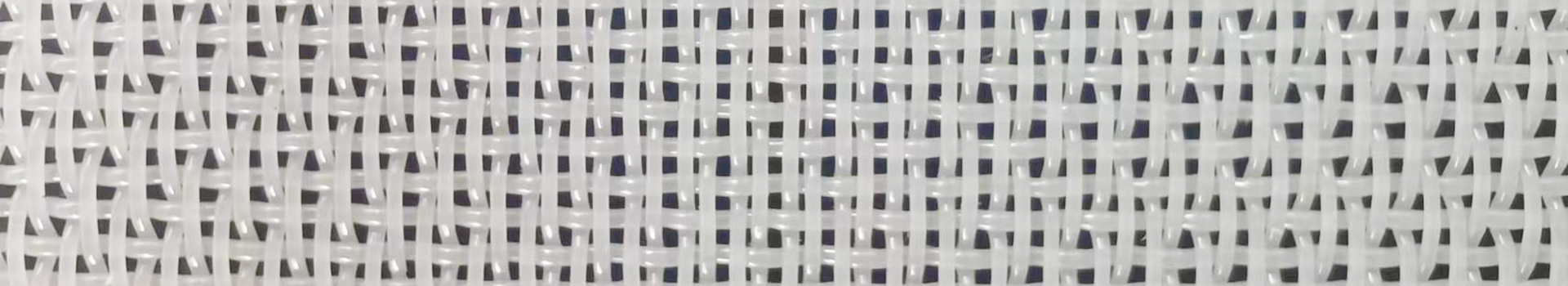

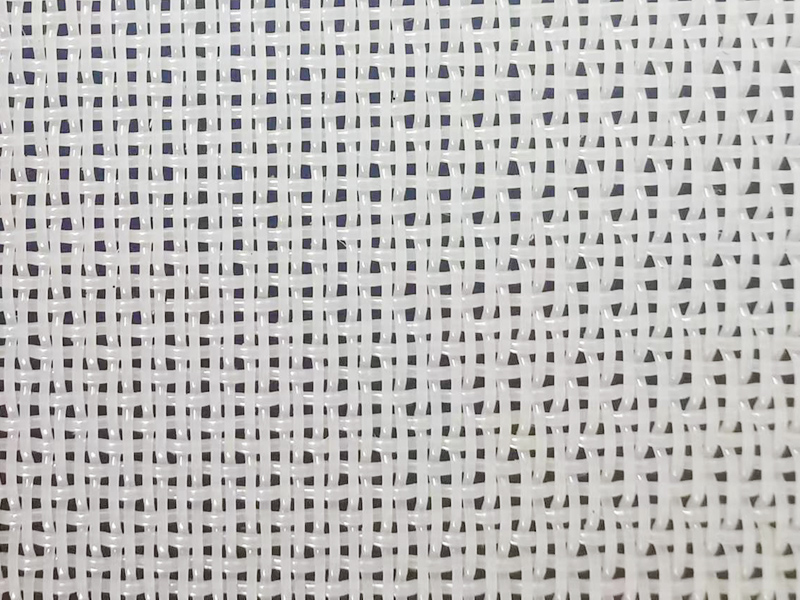

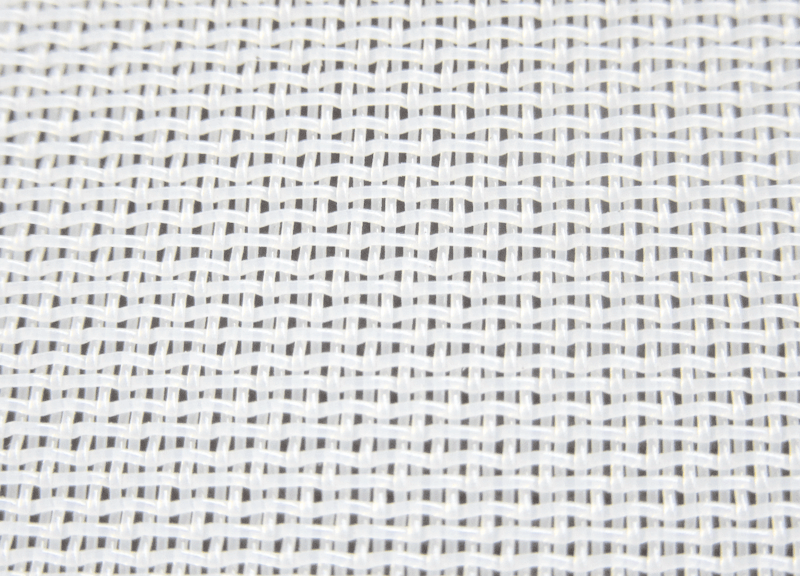

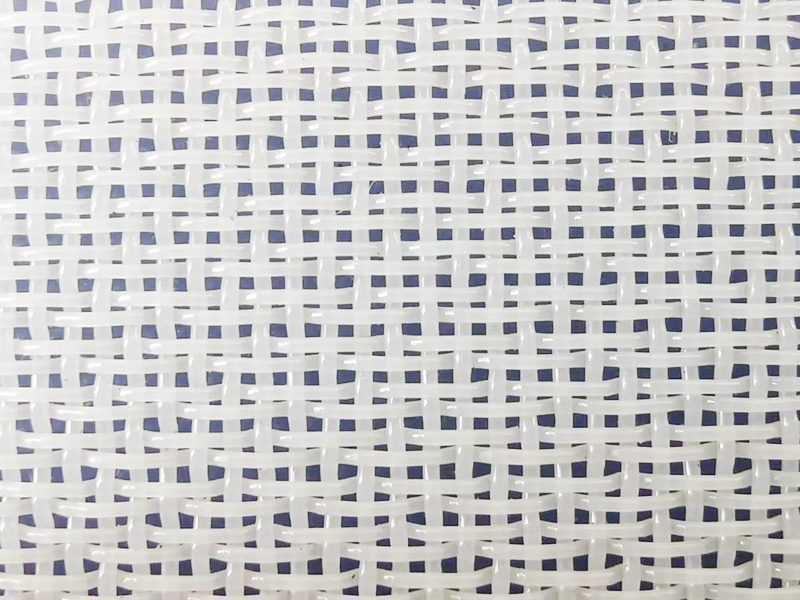

The Pulp Washing Mesh Fabric is a mesh used for removing impurities when the paper mill uses recycled waste paper to make pulp to replace the log pulp. It is woven with polyester monofilament. The requirements of paper mills for the pulp washing mesh fabric are fast dewatering, high retention rate, and fully filter out the debris in the recycled pulp.
Feature
● Fast dehydration
● High retention rate
● High tensile strength
● Strong anti-wrinkle ability
● Very durable
Application
Polyester Pulp Washing Mesh Fabric is used in several washing equipments. It’s mostly used in the horizontal belt washer, vacuum washer and rotary drum vacuum washer. The 2-shed plain-woven pulp washing mesh fabric is mainly used in special lines, such as paper pulps making, Subplate pulp packing and pulp, fiberboard plats as well as colliery, food and medicine as a conveyor belt.
Specification
| code | Filament diameter | Density(wire/cm) | Strength | weight | Thickness | Air permeability | ||||
| (mm) | (N/cm) | (Kg/m2)2 | (mm) | (m3/m2h) | ||||||
| warp | weft | warp | weft | surface | seamless joining | spiral joining | ||||
| 16304 | 0.25 | 0.3 | 19 | 15.5 | 1200 | 800 | 600 | 0.39 | 0.6 | 15000 |
| 18304 | 0.25 | 0.3 | 21 | 17 | 1300 | 850 | 650 | 0.44 | 0.62 | 13900 |
| 18354 | 0.25 | 0.4 | 21 | 19 | 1300 | 850 | 650 | 0.48 | 0.66 | 12000 |
| 18384 | 0.25 | 0.4 | 21 | 14.5 | 1300 | 850 | 650 | 0.51 | 0.71 | 9500 |
