POLYESTER SPIRAL DRYER BELT(SPIRAL DRYER MESH SCREEN)

Taifeng produce all kinds of polyester spiral dryer belt for drying and conveying.

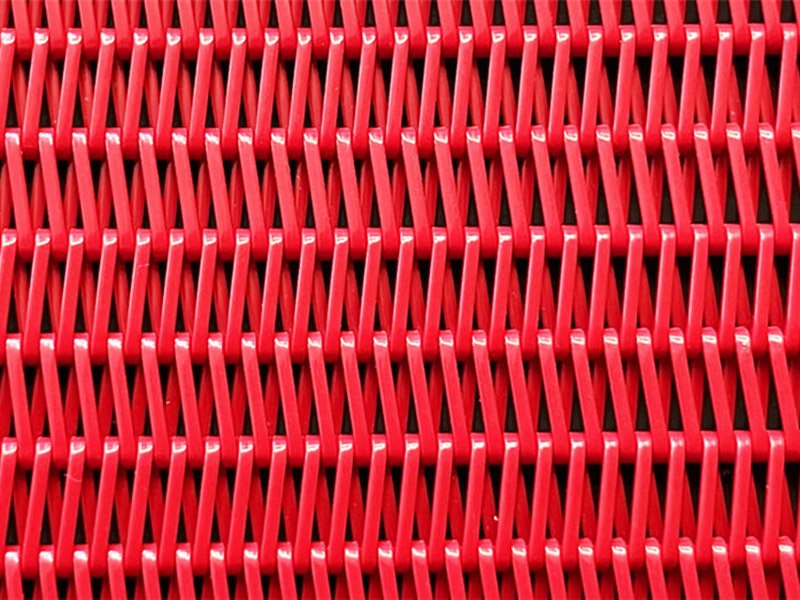

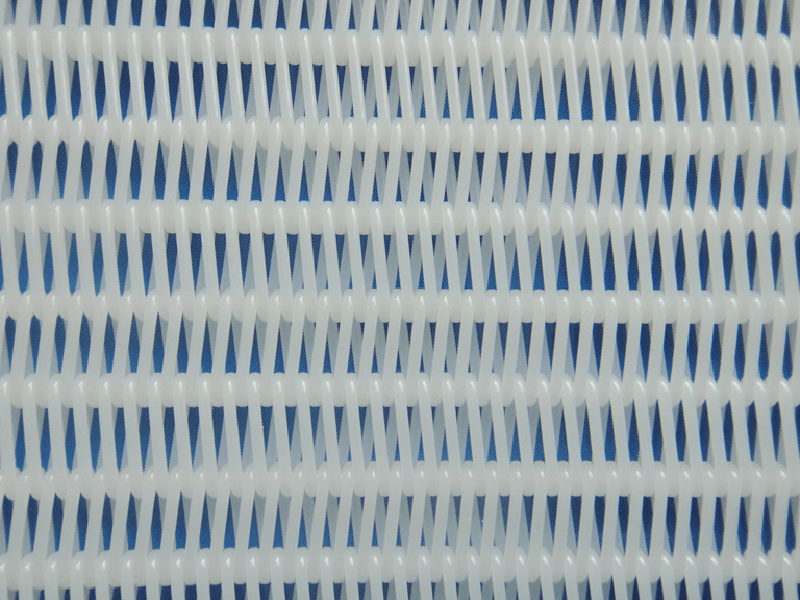

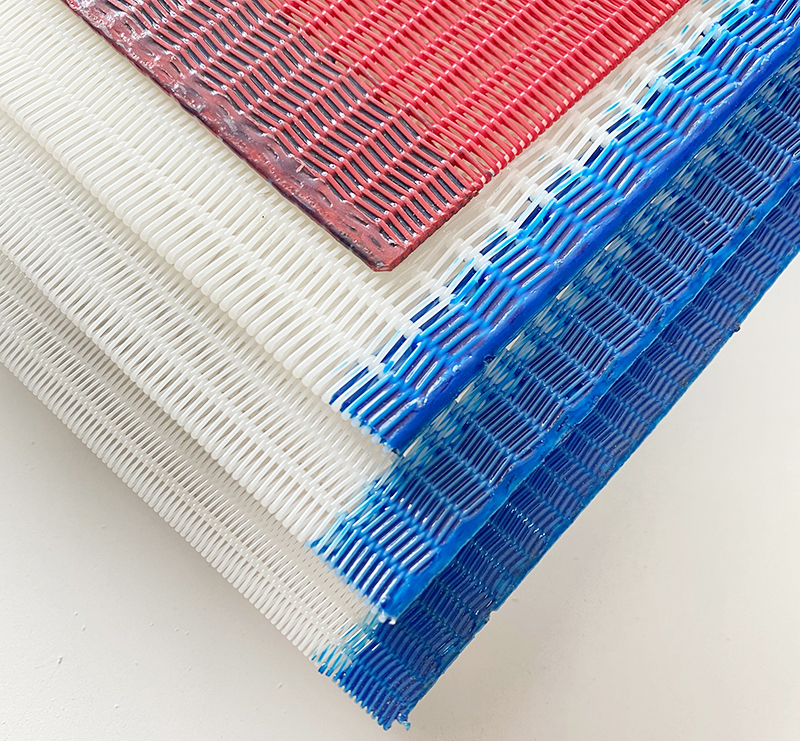

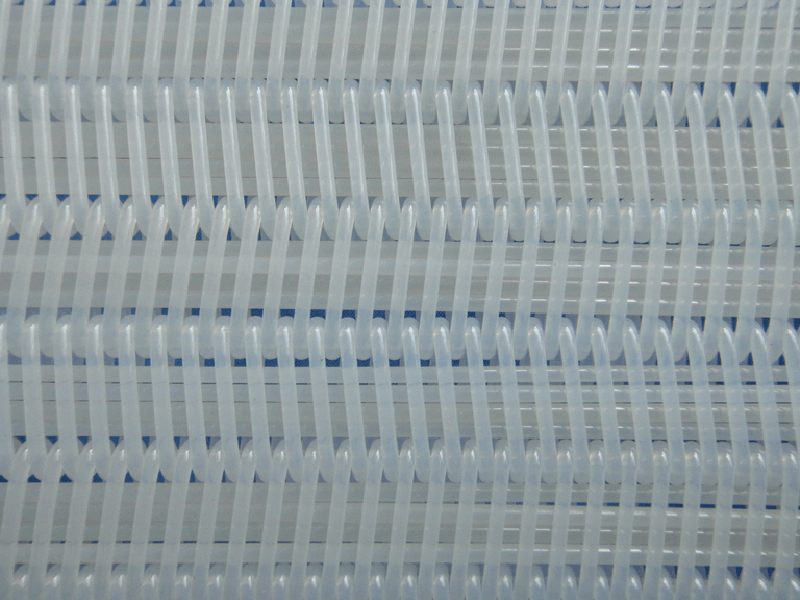

Spiral dryer belts is assembled throught different spiral loops, including small loop, middle loop, large loop, spiral dryer belt is mainly applicate for papermaking drying process to produce Kraft paper, corrugated paper etc

Spiral Dryer Fabrics | Paper Machine Clothing Drying Screen Supplier

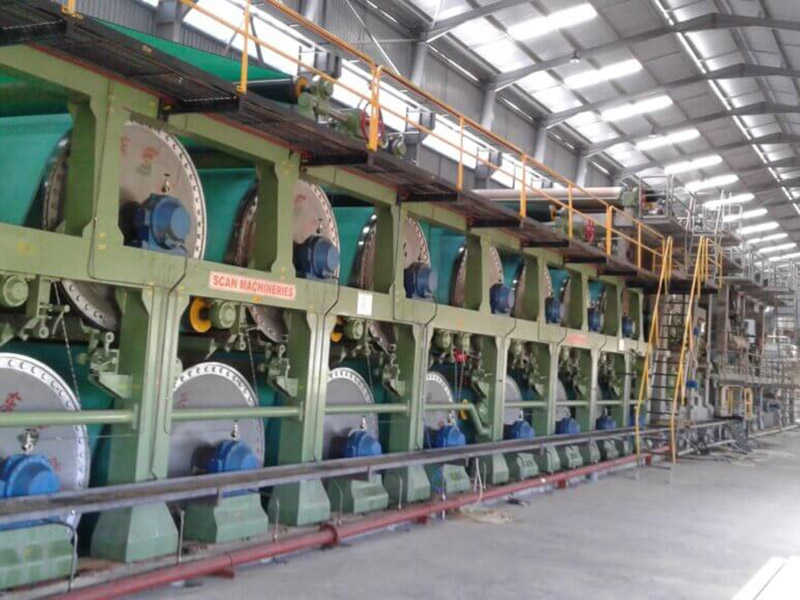

The spiral dryer fabric is a specially engineered paper machine clothing for the drying sector in the paper mill, also widely deployed in many other industries like food drying, nonwoven conveying, printed textile drying, etc. The spiral linked dryer fabrics featured for its continuous seamless screen, excellent strength and abrasion & distortion resistance, greater and adjustable ventilation.

1. The unique seamless spiral linked screen surface is ideal for the drying sector of mark sensitive papers, and the application where a seam is unacceptable. Each spiral loop could be joint, the seam is identical to the fabric body itself. It’s easy to install and repair to reduce downtime and increase long-life of the seam to save cost, as it is well known the joint is always the weakness of a circuit belt.

2. Taifeng’s spiral fabric belt for the paper dryer is made out by high-viscosity PET yarn with hydrolysis resistant masterbatch additive, to achieve much better durable properties and long service life. Normal Polyester yarn is easy corrosive and degraded by the heat steam, then become brittle and the integral dryer belt fabric have to be replaced. The additive of hydrolysis resistance masterbatch lengthens the service life 2-4 times more than the normal Polyester under thermal (100c-170c) drying working condition.

3. Comparing to the woven dryer fabric, the spiral dryer mesh belt has greater air permeability and drying efficiency. Permeability is the crucial parameter of a dryer fabric. Spiral dryer fabrics have greater air permeability than other dryer fabrics under the same working condition, it could help to lower the steam pressure in drying cylinder, or fast speed under the same pressure. Furthermore, the special spiraled construction make the dry fabric has a higher contact area to improve heat transfer. All these help enhance drying efficiency and save at least 10% of the energy cost, which is more economical.

4. The spiral dryer belt fabric has a smooth surface to get smooth and no marking sheet surface.

5. The spiral dryer fabrics made out by polyester yarn have excellent strength and wear resistance, thanks to the unique construction and strength of Taifeng’s superior PET material. It could endure greater tensile strength to make the sheet closer to the drying area, ensure even sheet moisture and shrinkage to get quality products.
