Polyester Forming Fabrics

Polyester Forming Fabrics Description

According to the weaving type, polyester forming fabrics can be divided into 4-shed, 5-shed, 8-shed, 16-sehd, 24-shed etc.

According to the category, it can be divided into single layer fabric, double layer fabric, two-and a half layer fabric and three-layer fabric.

4-shed and 5-shed series single layer fabric is standard type of polyester forming fabric in paper making, mainly used for producting cultural paper( single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and so on. Suitable for common fourdrinier paper machine.

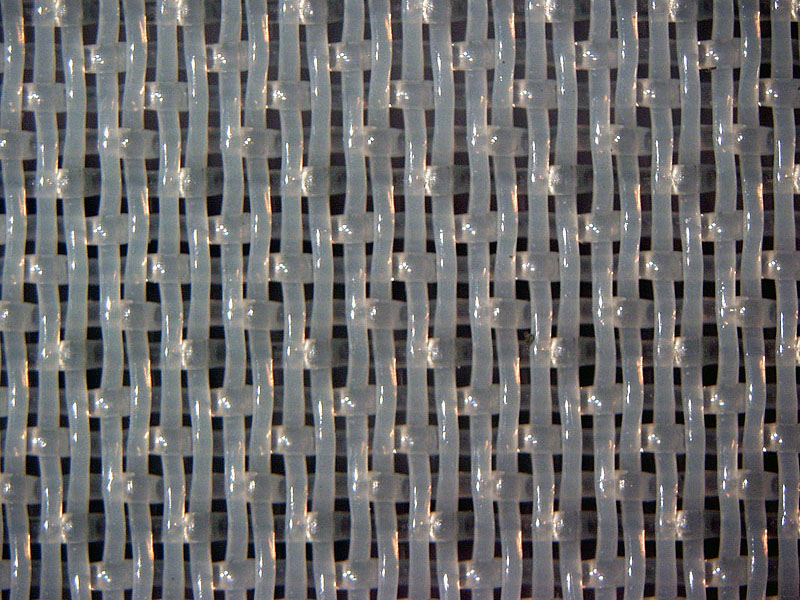

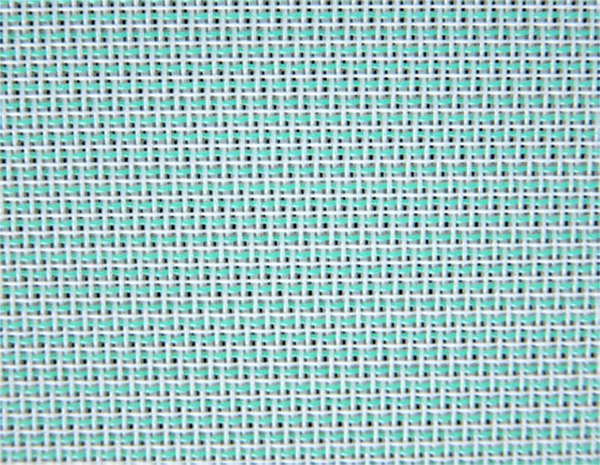

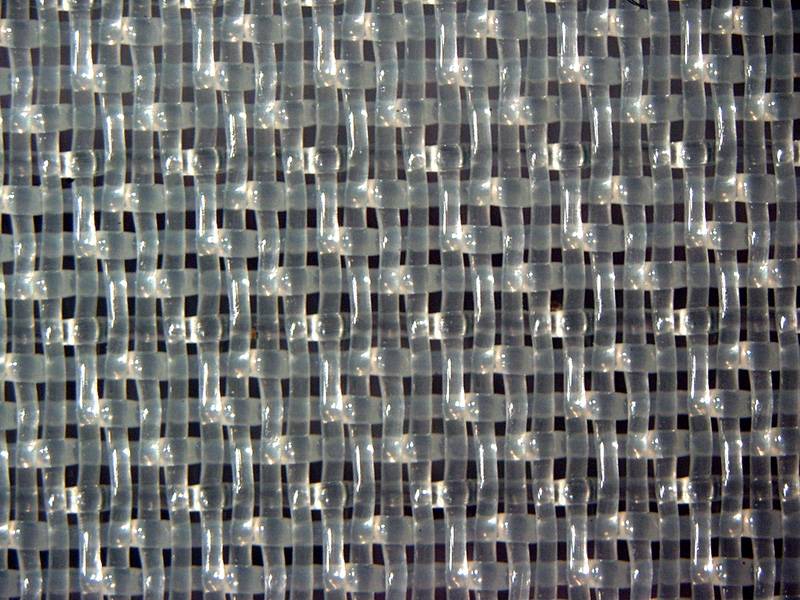

4-shed single layer forming fabric

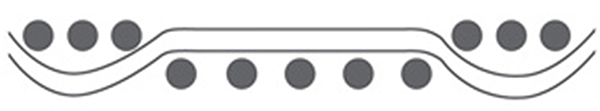

8-shed single layer fabric is suitable for producing the packing paper which be requested with big quantity, like kraft paper, cardboard, corrugated paper and so on. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.

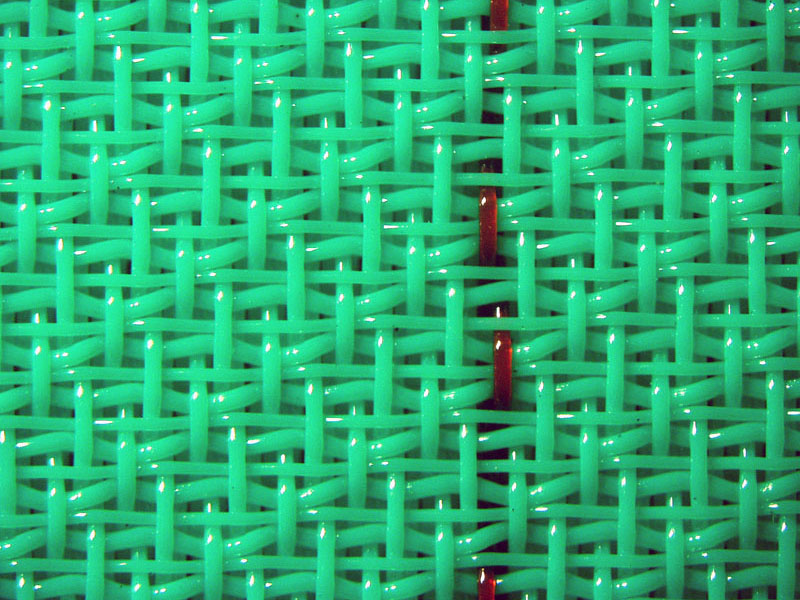

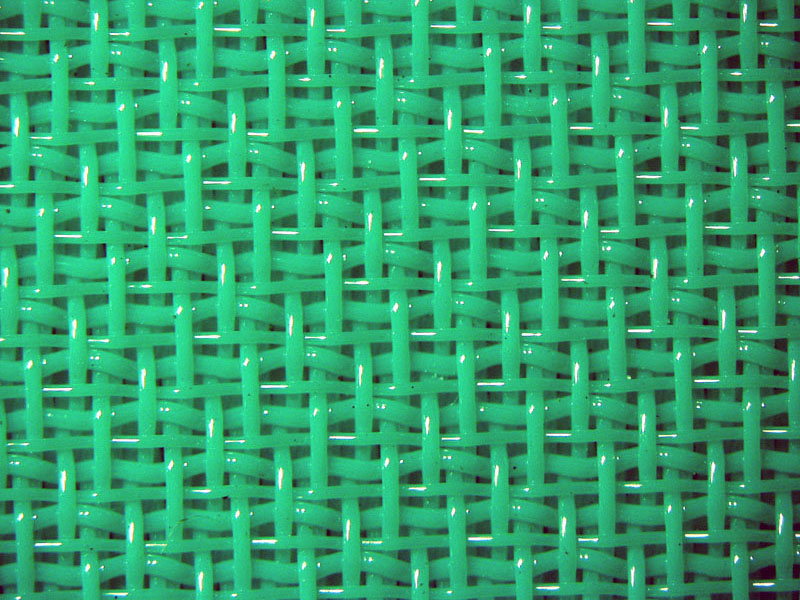

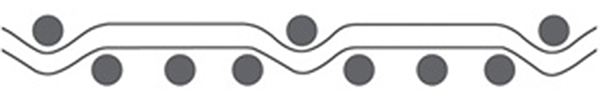

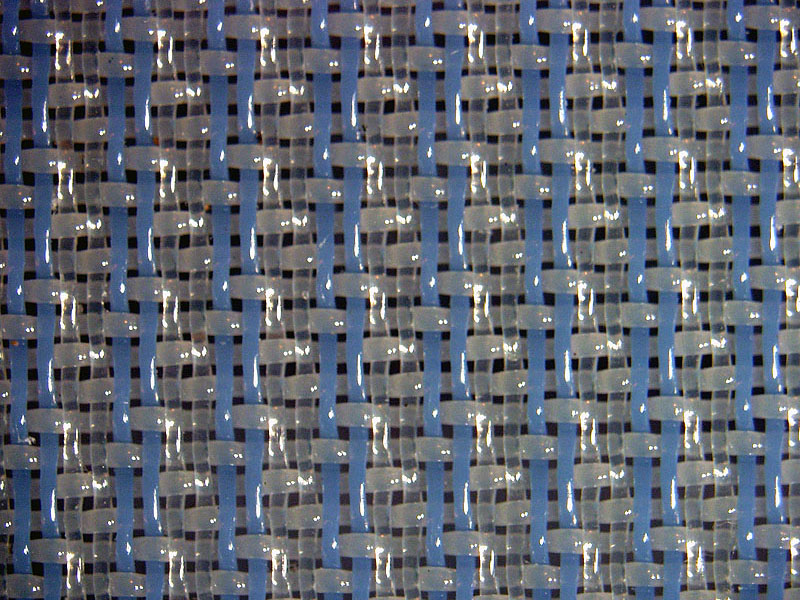

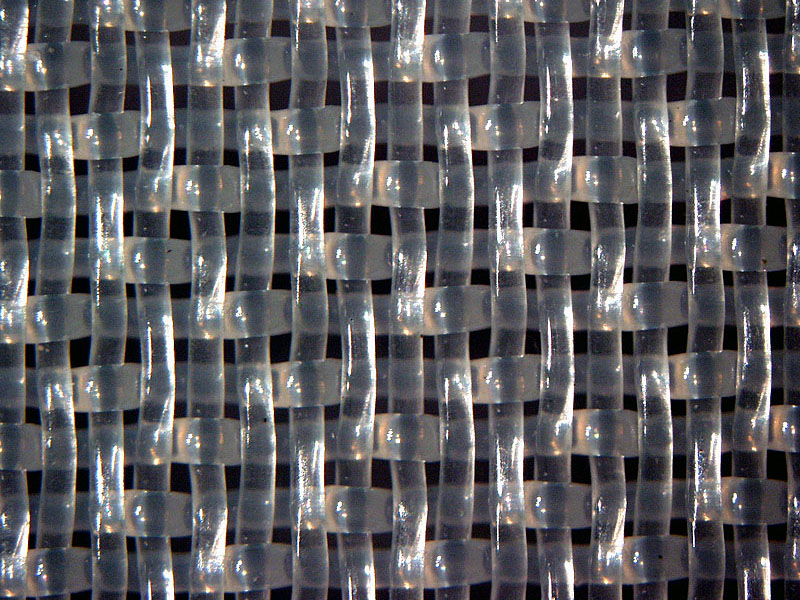

8-shed single layer forming fabric

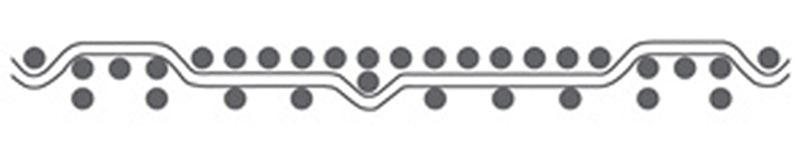

8-shed double layer fabric is suitable for producing quality printing paper which include dictionary paper, offset printing paper, newsprint and wrap paper. Also is could be used for producing tissu paper and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.

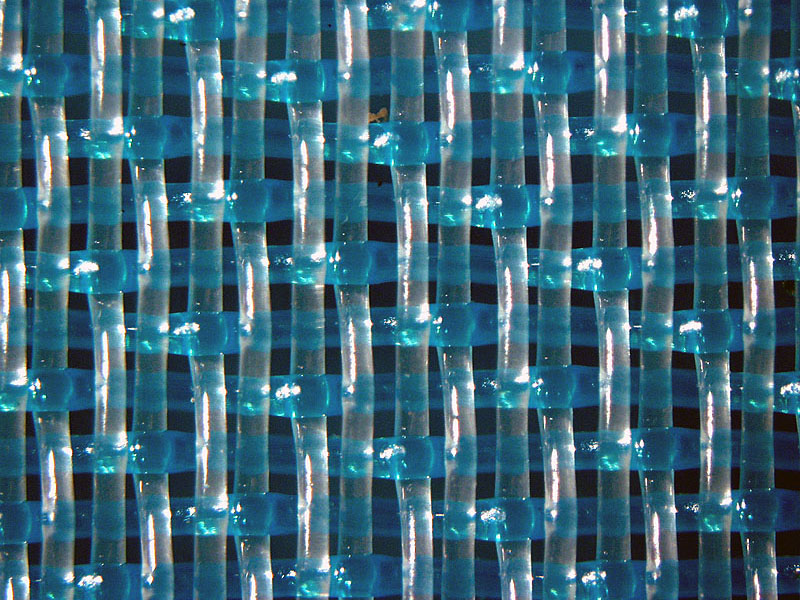

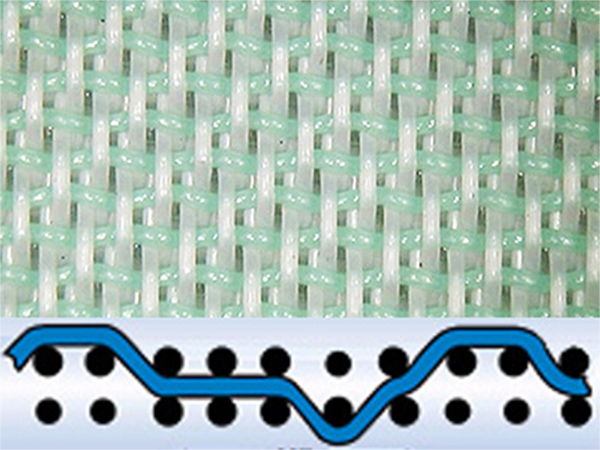

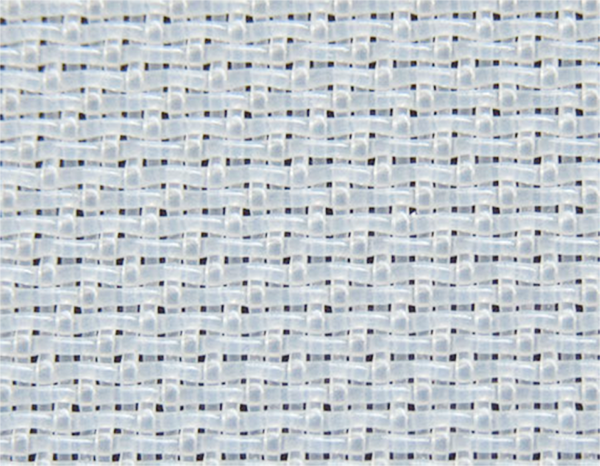

8-shed Double Layer Forming Fabric

16-shed double and a half layer fabric is suitable for producing quality printing paper, such as offset printing paper, copperplate paper, newsprint and cigarette paper series ( wrap paper and filter tips paper), also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paepr etc. Suitable for medium and high speed paper making machine.

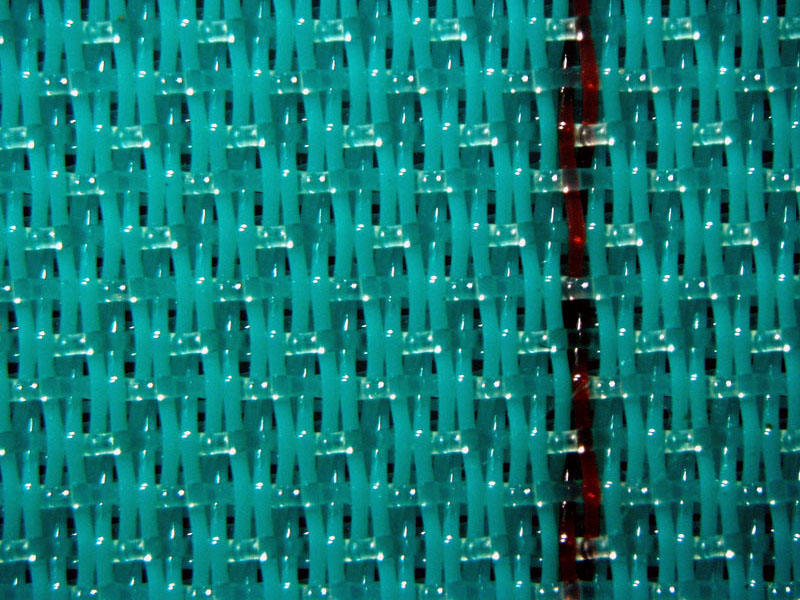

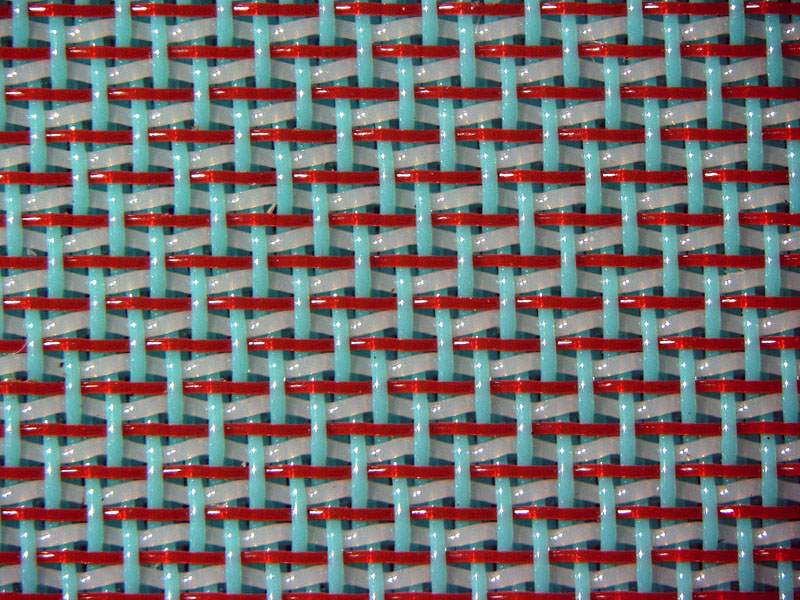

16-shed double and a half layer forming fabric

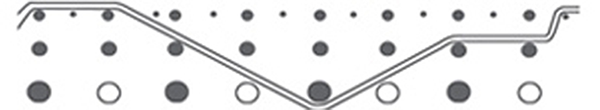

Multi-shed three-layer SSB forming fabrics is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.

SSB Polyester forming fabrics.jpg

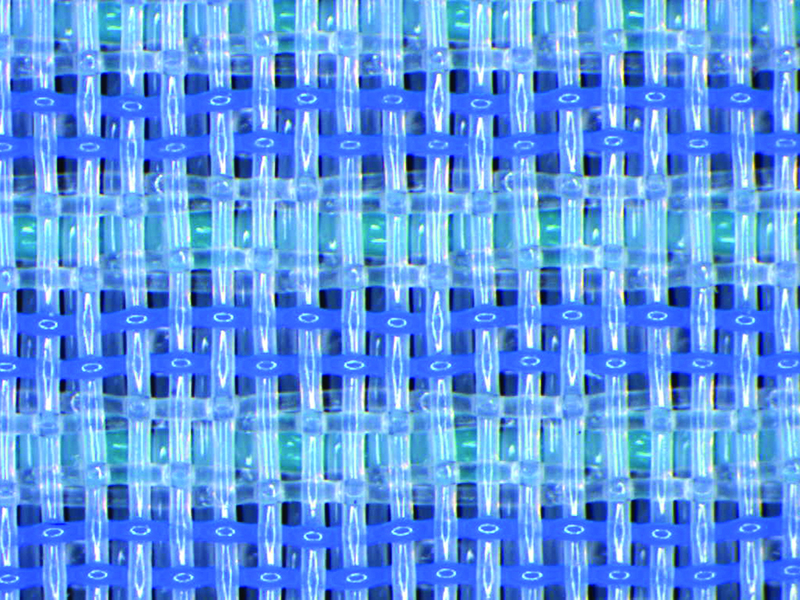

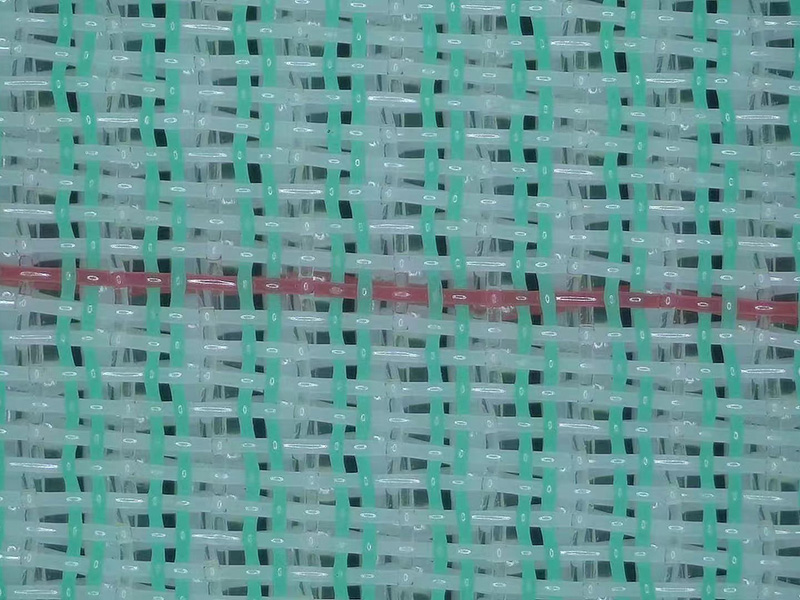

20 shed-three layer SSB forming fabric

Specification

Weaving series&types	Model of Fabrics	Wire diameter		Density		Strength	Air Permeability (m3/㎡h)

		(mm)		(wire/cm)		(N/cm)
		Warp	Weft	Warp	Weft	Surface
4-shed single layrer fabric	27254	0.2	0.25	30	22	≥600	8000
	27274	0.2	0.27	30	22.5	≥600	7800
	31204	0.18	0.2	35	28	≥600	7500
	31204-1	0.18	0.2	35	30	≥600	7000
5-shed single layer fabric	30205	0.17	0.2	32	28.5	≥600	7100
	31215	0.2	0.25	35	32	≥600	7000
	27255	0.2	0.35	30	22	≥600	8000
8-shed single layer fabric	25358	0.22	0.35	28	19.5	≥700	9000
	25388	0.22	0.38	29.5	19	≥700	8500
	27358	0.22	0.35	29	20	≥700	8500
	27388	0.22	0.38	31.5	19	≥700	8000
7-shed double layer fabric	56177	0.17	0.17/0.20 0.20(t66)	60	48	≥800	5200
7-shed double layer fabric	57177	0.17	0.17/0.22 0.22(t66)	65.7	49.6	≥800	4550
8-shed double layer fabric	56188	0.17	0.18/0.20 0.20(t66)	61.3	51.2	≥850	5700
	60188	0.18	0.19/0.20 0.20(t66)	66	49	≥900	4750
	62188	0.15	0.16/0.19 0.19(t66)	70.5	50.5	≥900	6200
16-shed two and a half layer fabric	365016	0.28	0.20,0.27/0.50,0.50	37-38	31-32	≥ 1200	8500±500
	424516	0.25	0.20,0.25/0.45,0.45	48-49	42-43	≥ 1250	8000±500
	562516	0.18	0.13,0.18/0.25,0.25	57-58	46-47	≥ 1500	6500±500
	563516	0.2	0.13,0.25/0.35,0.35	56-57	61-62	≥ 1500	7000±500
	602516	0.18	0.13,0.20/0.25,0.25	62-63	55-56	≥ 1500	6200±500
	603516	0.2	0.13,0.25/0.35,0.35	61-62	52-53	≥ 1500	6300±500
20-shed triple layer fabric	563520	0.15,0.20	0.15,0.15/0.35,0.35	70	55	≥ 1600	5000±500
24-shed triple layer fabric	364024	0.20/0.20	0.20,0.17/0.40,0.40	42	52	≥1600	6500±500
