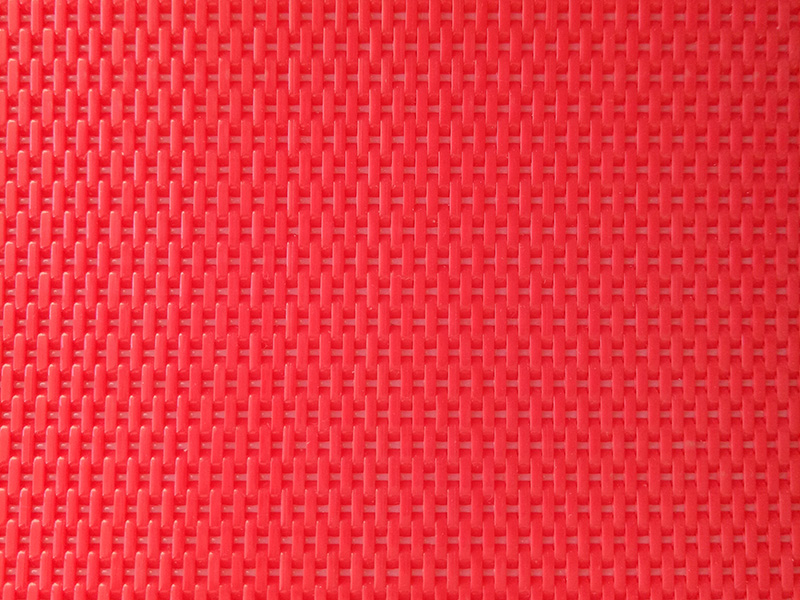

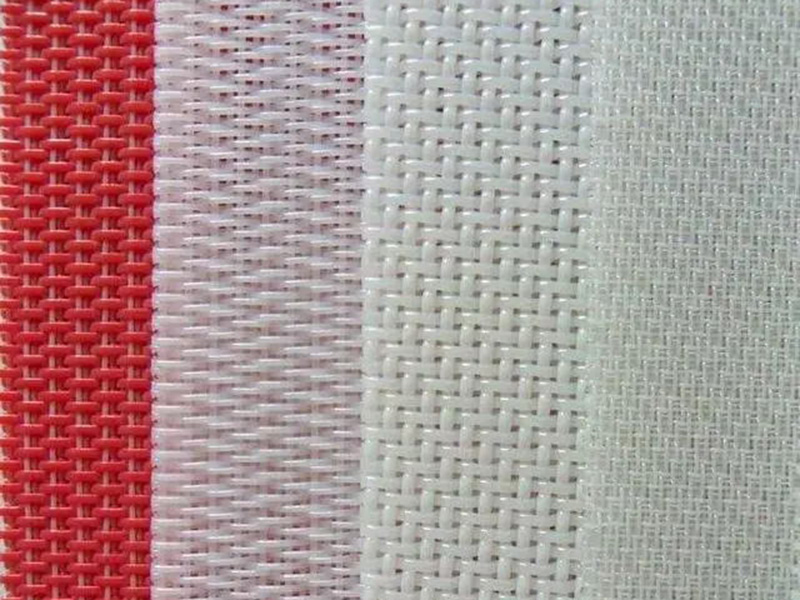

Paper Machine Clothing Woven Dryer Fabrics

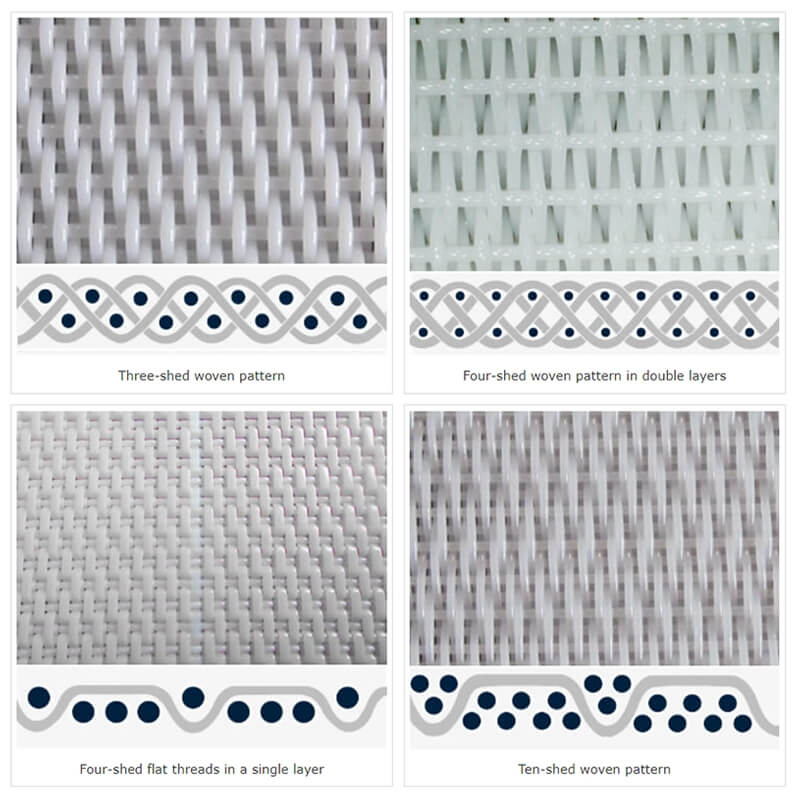

According to the category, Polyester Woven Dryer Fabric can be divided into one and a half layer dryer fabric, double layer dryer fabric, round yarn woven dryer fabric , flat yarn woven dryer fabric, double warp flat yarn woven dryer fabric.

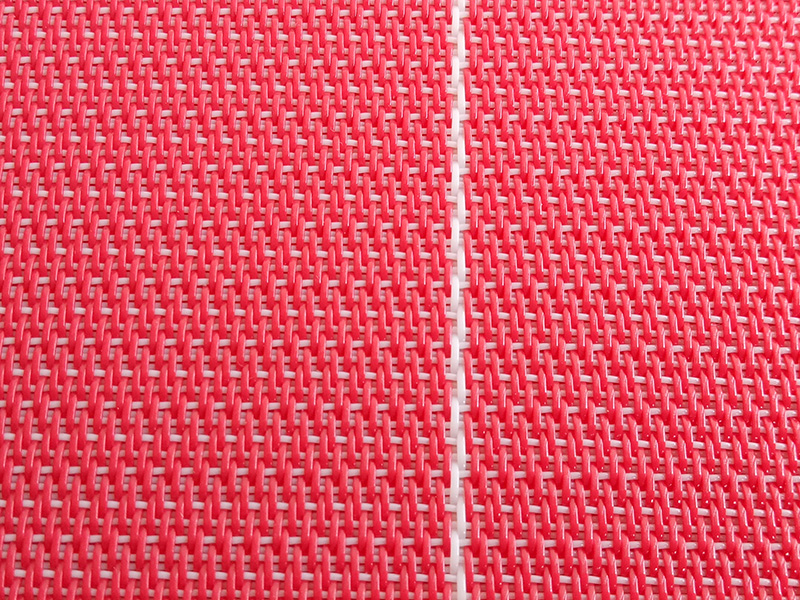

Round yarn woven dryer fabric: its round yarn surface is smooth and stable with long life time, it is mainly produced all kinds of cultural paper, printing paper, writing paper, wrapping paper, cardboard paper ,corrugating medium, Also can be used on dryer section for other industry.

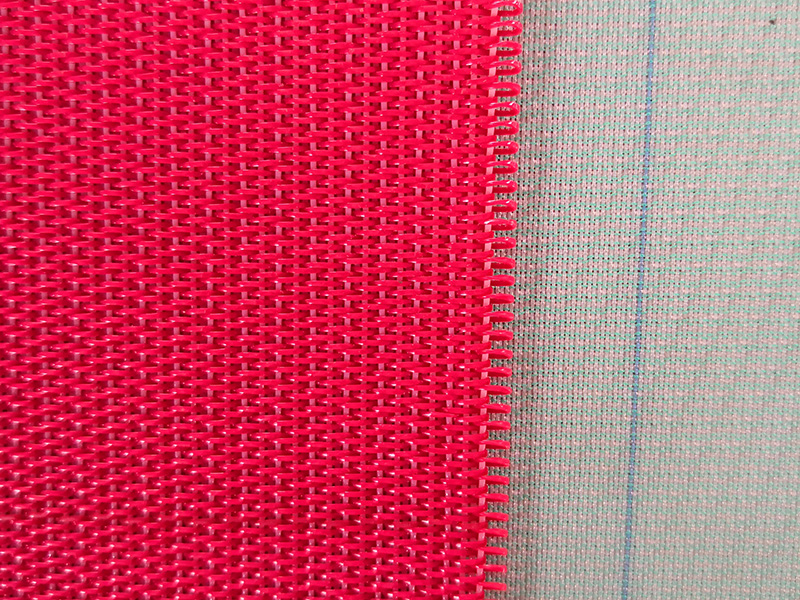

Flat yarn woven dryer fabric: it use rectangular cross-section of polyester yarn as warp and the line-frame of flat yarn is small and joint is long so the fabric surface is more smooth than round yarn woven dryer fabric, the paper mark is more light and more stable with longer life time.

Flat yarn woven dryer fabric and double warp flat yarn woven dryer fabric is suitable for the fore several dryer cylinder of the drying section, and they can produce all kinds of quality papers Suitable for medium and high speed paper making machine.

Woven dryer fabric influences the drying process by openness and contact area with the paper sheet. Different yarn structures and shapes are used to control air permeability (CFM) and influence properties such as contact area, wear resistance, stability and cleanliness. Dryer fabrics are woven with round or flat monofilaments for drying requirements of different paper grades, machine speed. Flat wire dryer fabric is mainly used in the fore heating box of the drying zone, and also can be used for all the quality paper making.

Feature

● Our woven dryer fabric materials have excellent hydrolysis resistance in moist conditions and degradation resistance in dry heat to reach optimum economic life.

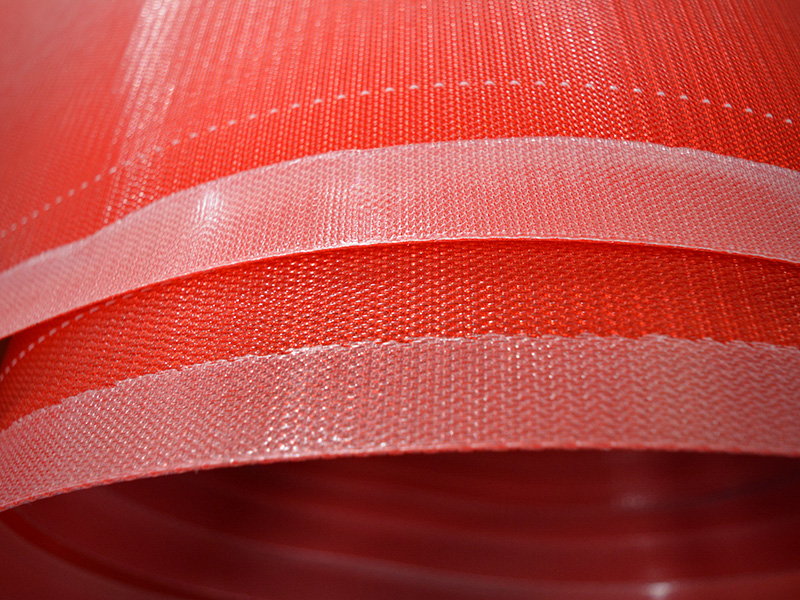

● PPS (Phenylene sulfide) materials are available as a choice to reinforce the edge to operate in severe conditions.

● We use different yarn structures and shapes to control air permeability and other properties such as contact area, wear resistance, stability and cleanliness.

● Rectangular or flat monofilament yarns are used as machines and cross-directional yarns to improve runnability, sheet handling and wear potential on high-speed machines.

● Special material dryer fabric has the characteristics of high-temperature resistance, abrasion resistance and aging resistance, etc.

Application

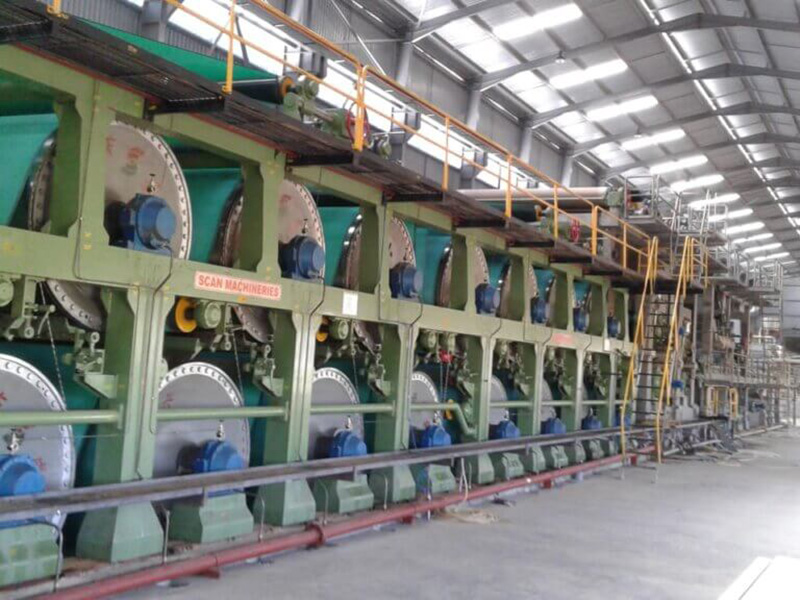

Polyester Woven Dryer Fabrics mainly used for paper mill paper drying, drying and other industry areas. The Woven Dryer Fabrics are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested in big quantity. The fabric is widely used in papermaking, mining, food, pharmaceutical, printing and dyeing, rubber industry. Also, could be used as a conveyor belt and the laminating machine matching belt.

Specification
